CHARTERED ARCHITECT . CHARTERED ARCHITECTURAL TECHNOLOGIST

BARN CONVERSION . ASTLEY

The approach to barn conversions typically begins with a comprehensive assessment of the existing structure rather than the development of the architectural design itself. Key considerations include the presence of damp, dry rot, woodworm infestation, structural stability, and identifying which elements of the original fabric can be retained and restored. The preservation of historic structural components and detailing is fundamental, as these features contribute significantly to the character and quality of the completed dwelling.

Prior to commencement of the project, a detailed structural survey was commissioned. The report identified isolated structural failures and areas affected by rot, but ultimately confirmed that the barn remained fundamentally sound. Steel tie rods previously introduced around the external walls were determined to be ineffective and were subsequently removed without compromising the integrity of the structure.

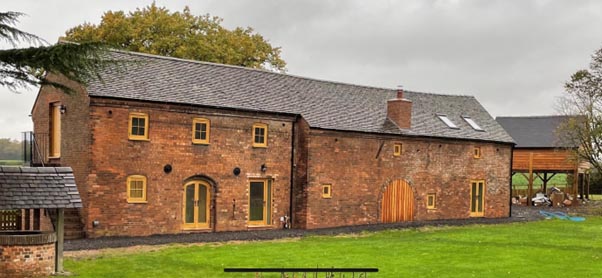

The original king post and oak roof trusses were successfully retained and refurbished following specialist treatment for woodworm infestation. Externally, the brickwork was carefully repointed, while the existing roof tiles were carefully removed and reused wherever possible in order to preserve the building’s original character and appearance.

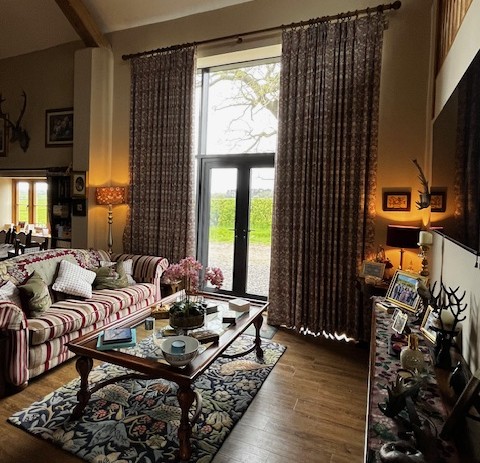

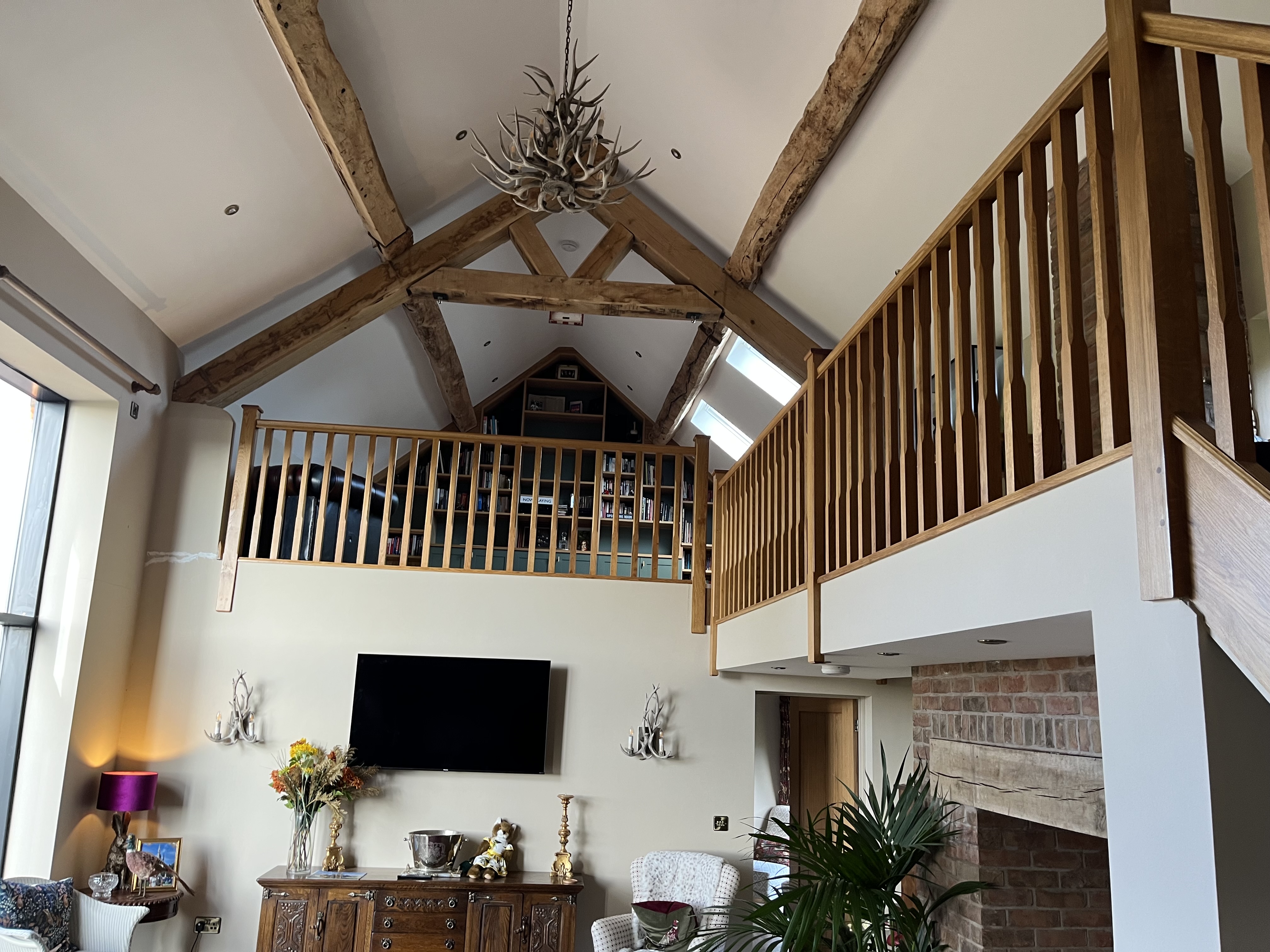

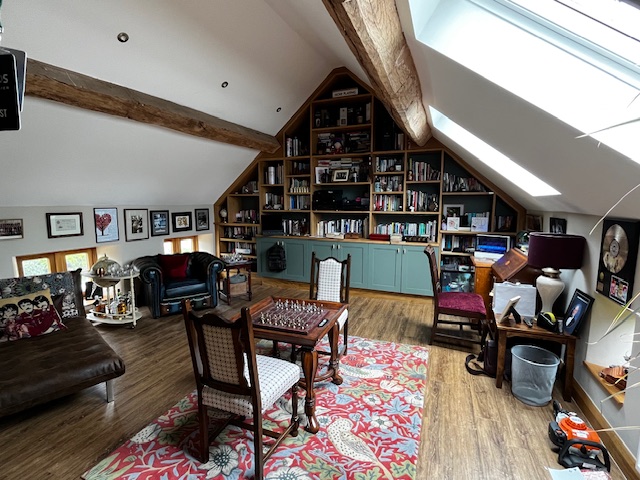

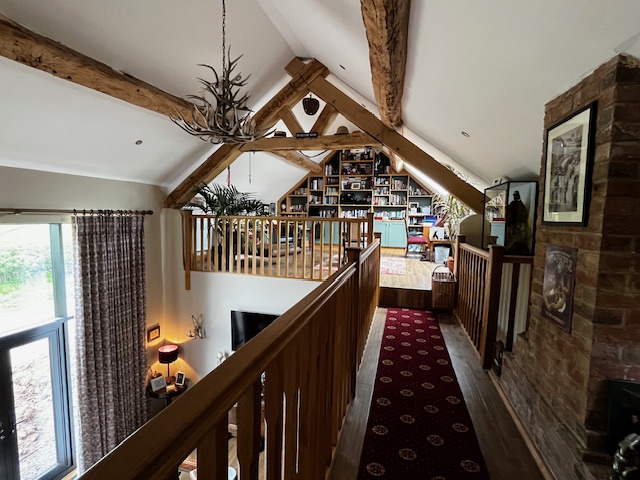

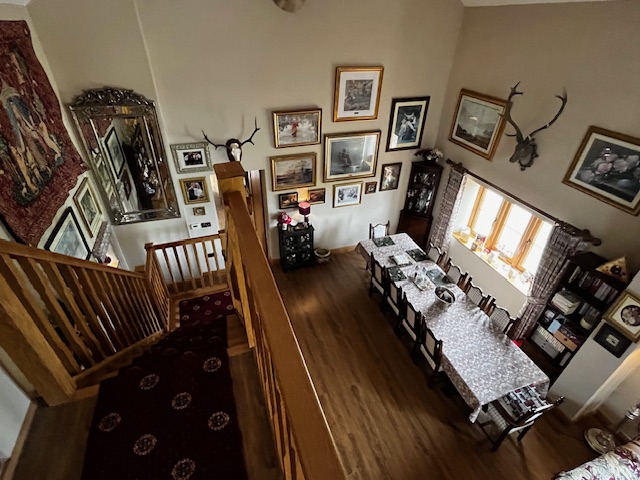

The conversion incorporates an impressive double-height space above the principal living area, complemented by a galleried landing that not only provides access to the first-floor study but forms an inglenook fireplace to the living space below. As the original structure understandably lacked adequate thermal insulation, an internal blockwork lining was introduced. This intervention provided the necessary thermal performance while also supporting the new first-floor structure without imposing additional loads upon the existing structure.

An unusual feature of the barn was a small first-floor room accessed externally via stone steps, believed to have originally served as accommodation for agricultural workers. Following renovation, this space was transformed into a self-contained guest suite.
